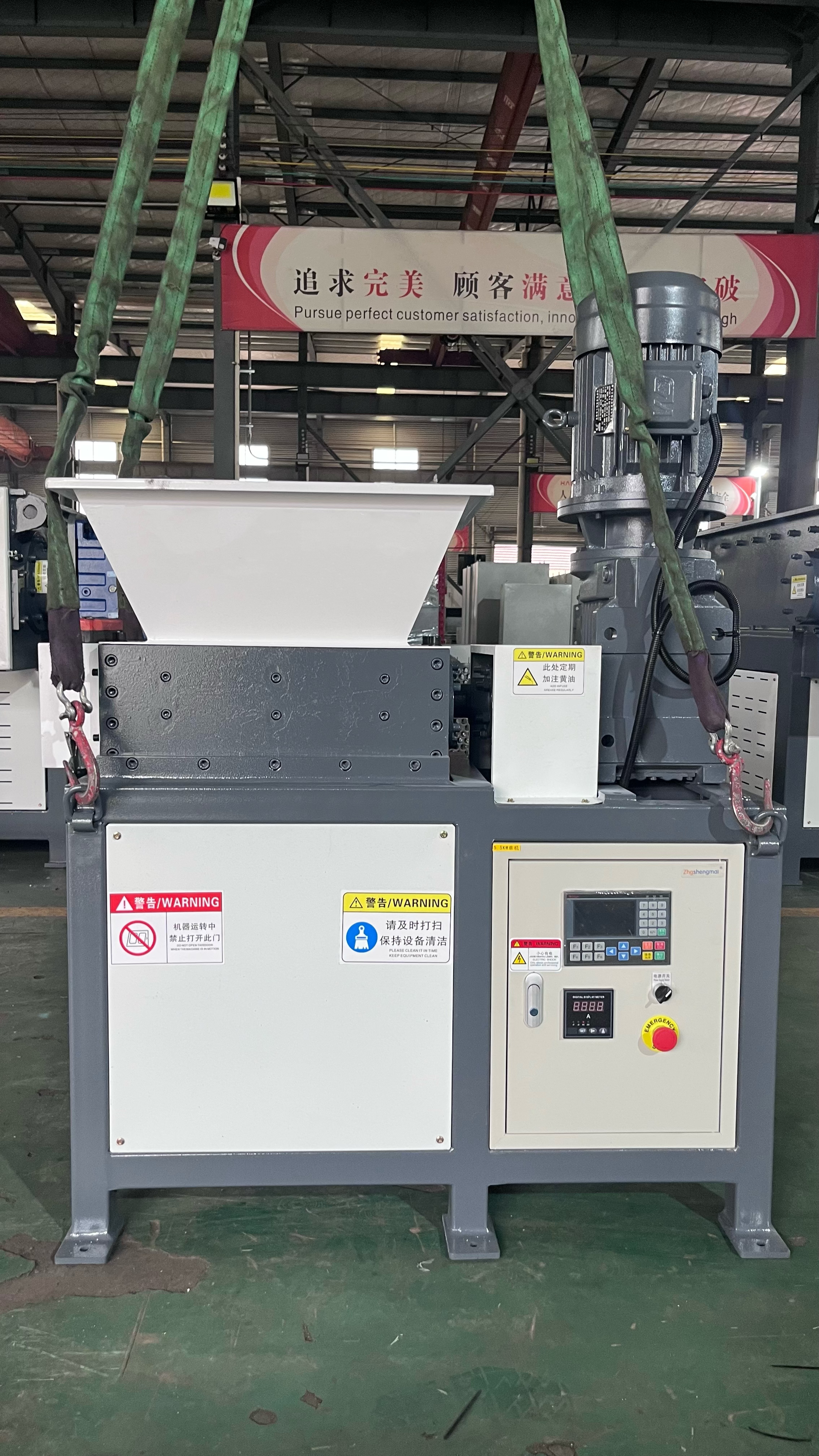

200 Double Shaft Shredder – Single Motor: Technical Overview
200 Double Shaft Shredder – Single Motor is configured for stable size reduction of plastic film, paper, cloth, fibre, sponge, foam, soft rubber and light domestic waste. The machine can be adapted to the customer’s material, feeding method and downstream recycling process.
Technical Parameters
| Overall dimensions | 850 x 590 x 350 mm |
|---|---|
| Shredding chamber | 200 x 180 mm |
| Motor | 1.5 kW, single motor |
| Gearbox | K47 |
| Blade configuration | H13; 20 blades, 90 mm diameter x 10 mm |
| Rotational speed | 25 rpm |
| Typical output size | 8-18 mm |
| Reference capacity | 10-30 kg/h |
| Applicable materials | Plastic film, paper, cloth, fibre, sponge, foam, soft rubber and light domestic waste |
Capacity and final particle size vary with material density, moisture, feeding method and blade configuration. Final specifications are confirmed after sample or application review.
Why Choose This Configuration
High-torque shearing
Low-speed cutting provides stable torque for bulky and mixed solid waste.
Automatic protection
PLC control, overload protection and automatic reverse reduce jamming and protect the drive system.
Serviceable design
Wear parts, blades and drive components are arranged for practical inspection and maintenance.
Suitable Applications
- Plastic recycling
- Light metal and scrap preparation
- Wood and pallet waste
- Rubber waste
- Industrial solid waste and RDF preparation
Before We Quote
Please provide material photos or video, maximum feeding dimensions, target output size, expected hourly capacity, daily operating hours and local voltage. This prevents undersizing and unnecessary power cost.
Frequently Asked Questions
Can the blade thickness and output size be customized?
Yes. Blade geometry, thickness, spacing and screen opening can be configured after reviewing the material and target output.
Can you test our material before production?
Material samples, photos or operating videos can be reviewed. A test arrangement can be discussed for difficult or mixed materials.
What support is available for overseas buyers?
We provide configuration confirmation, drawings, operating documentation, spare-parts recommendations and remote technical support.
Get a quotation for the 200 Double Shaft Shredder – Single Motor
Send the material, feeding size, required output size and hourly capacity. Our engineering team will recommend a suitable configuration.
